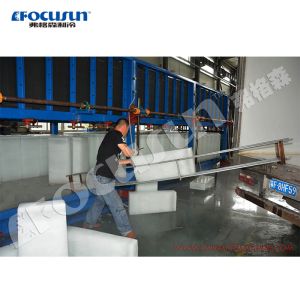

Non-solar FOCUSUN Big 25Ton ICE BLOCK MAKING MACHINE
Focusun Direct technology advantage: not only for fish industry, but also for human consumption; more automatically. Disadvantage: just initial time investment is a little higher than brine technology.
Brine technology advantage: price is lower. Disadvantage: only for cooling purpose, can't be eaten; need more workers. Big brine tank not easy for shipment, so it needs customer build it locally with concreting
All parts of Focusun direct system block ice machine which contact with water are made of SUS304 or aluminum alloy material. The produced ice is clean and hygiene, complying with HACCP certification requirement. Ice could be eaten directly.
Our engineer go all over the world to help you to install & commission our block ice plant after you bought from us. Like in India, Canada, middle east, South Africa, the Philippines, Brazil, England, and Australia.
| Big Capacity Focusun 10Tons/24hours Direct Cooling Block Ice Machine |
| Model | FIB-250WS |
| Daily Capacity | 25Tons/24hours |
| Cooling Mode | water Cooling Condenser |
| Numbers of person to operate | 1 or 2 person to assist, it’s automatic |
| Weight of block ice | Can choose 25kg or 30kg or 50kg |
| Power consumption | Only 65KW to produce 1000kg of block ice |
| Dimension of 10ton Block ice machine (I will send you the drawings and layout to check detail dimension) | Ice Machine Unit: L3200×W1800×H2200 |
| Ice Evaporator: L4800×W1000×H2250 |
| Cooling Tower: 3050×H2780 |
| Refrigerant | R404A/R507 |
Block Ice Machine Work conditions:
1 All-in-one refrigeration systems.
2 Specially-designed evaporator, aluminum freezing plate, conforms to food standards.
3 Clean and sanitary block ice, suitable for human consumption.
4. Also can be used for cooling, fish cooling ,etc.
5 The refrigerant can be used globally, in line with national and international standards.
6 PLC controls and self-protects from breakdowns during water filling, ice making and harvesting.
7 Production capacity: 1tons to 30tons (if you choose non-containerized, no limitation about the largest capacity) with block ice weight of 5kg, 10kg, 15kg, 20kg, 25kg and 50kg)
8. Pneumatic crawler conveying system, maximizing the protection to the ice blocks during harvesting.
9. Bitzer compressor offers abundant compressing power and guaranteed producing ice in the shortest period with less energy consumption
10. Module design, the whole set consists of machine unit module, evaporator module, and cooling tower module; easy to ship and install; evaporator module can contain several parts in terms of capacity.
Different deisgn of FOCUSUN Block ice machine
BLOCK ICE MACHINE WITH FORKLIFT DESIGN, CAN USE FORKLIFT TO MOVE ONE BATCH OF ICE TOGETHER TO ICE STORAGE ROOM.
BLOCK ICE MACHINE WITH MOVING OUT DEVICE DESIGN:
BLOCK ICE CRUSHER AND BLOCK ICE CRUSHER WITH CONVEYOR
BLOCK ICE STORAGE ROOM
FOCUSUN EXHIBITION FAIR IN SHANGHAI
Trust from Focusun customers:
